Hebei Fengchao Import and Export Co., Ltd. is one of the most reliable manufacturers and suppliers of graphite electrode 700×2400mm in China. With a professional production team, we are able to meet the needs of the majority of our customers. If you're going to wholesale bulk graphite electrode 700×2400mm made in China, welcome to get pricelist from our factory.

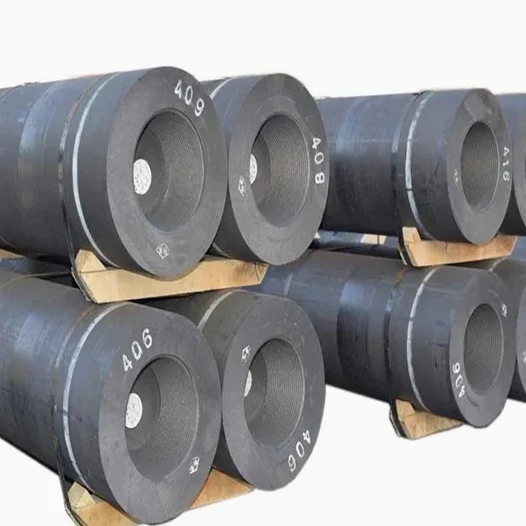

This 700×2400mm ultra-high-power graphite electrode adopts a refined fine-grain formula and delivers outstanding resistance to deep thermal erosion at the core, which mitigates hollow core damage under continuous ultra-high-current operation. As an extra-large size product, it withstands higher current loads and stabilizes arc geometry. It is suitable for extra-large electric arc furnaces equipped with high-capacity transformers to support high-intensity continuous smelting operations.
This 700×2400mm ultra-high-power graphite electrode features precisely controlled fine-grain density and can withstand scouring by alternating high-pressure airflow inside the furnace. It slows down inward-propagating erosion originating from the electrode interior and reduces the risk of sudden core collapse during long-cycle smelting. In addition to steelmaking in ultra-large-capacity electric arc furnaces, it is also applicable to large submerged arc furnaces for manganese-silicon alloy smelting. It is a preferred premium consumable for modern metallurgical enterprises aiming to extend furnace campaign life and reduce scheduled shutdowns caused by electrode replacement.
This extra-long, extra-large 700×2400mm ultra-high-power graphite electrode is made of high-purity fine-grain petroleum-based needle coke and modified impregnating pitch with a high softening point. Manufactured using an extra-large horizontal extruder and dedicated CNC machining line for long workpieces, it undergoes paste rheology testing, staged cyclic roasting, high-pressure impregnation and high-temperature graphitization. The R&D team has overcome production bottlenecks related to paste rheology for extra-long carbon blanks and finely tuned the cooling gradient curve after heat treatment. Offline test stations are deployed in the plant for batch-by-batch performance monitoring. We cooperate with iron and steel enterprises for on-site trial production to iteratively optimize grain formulations.
The company holds ISO9001 Quality Management and ISO45001 Occupational Health and Safety Management System certifications. Every finished 700×2400mm electrode undergoes a full suite of mechanical property and resistivity tests, supplying reliable high-performance carbon consumables for mega metallurgical smelting projects.

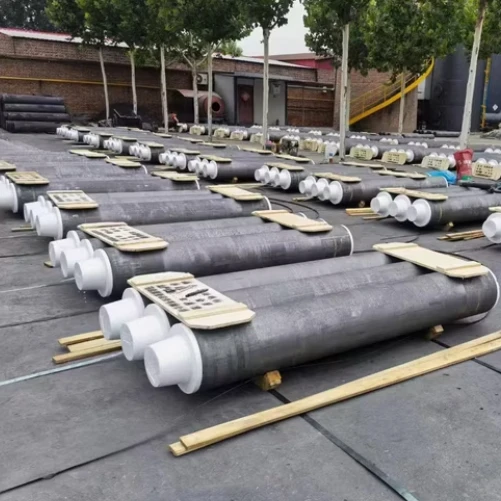

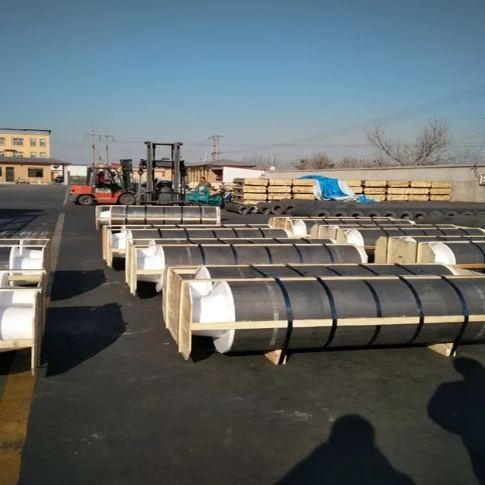

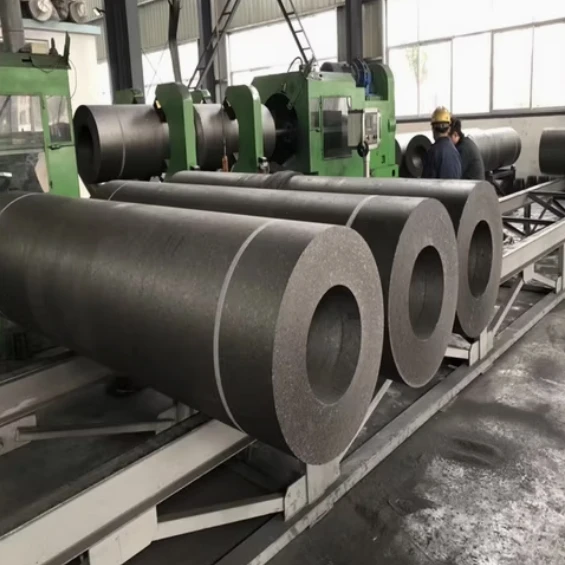

Factory Tour
FAQ
Q: Given the great length and heavy dead weight of the 700×2400mm electrode, what special requirements apply to hoisting operations?
A: Hoisting directly from threaded sections is strictly prohibited. Special flexible slings shall be used to lift the electrode at appropriate midspan positions, preventing invisible internal cracks caused by bending stress on the long body.
Q: What adverse consequences will uneven cooling of the electrode column bring after an emergency furnace shutdown?
A: Rapid and uneven cooling generates asymmetric residual stress inside the extra-long blank. Upon resumption of smelting, longitudinal splitting of the electrode body is highly likely to occur.
Q: What mandatory requirements apply to the strength grade of nipples when specifying 700×2400mm electrodes?
A: Nipples must be of the corresponding high-strength grade. Lower-grade nipples cannot bear the enormous static load of this heavy long electrode and may suffer sudden fracture under smelting conditions.
Q: How does humidity in the warehouse affect long-term storage of extra-long electrodes?
A: In persistently humid environments, moisture slowly penetrates inward through thread gaps. After furnace charging, absorbed moisture vaporizes rapidly and may induce longitudinal cracks in the electrode.
Q: Which factors accelerate thread wear on nipples matched with 700×2400mm electrodes during continuous smelting?
A: Reciprocal micro-slip at nipple gaps caused by furnace mechanical vibration gradually wears the thread profile and may ultimately lead to nipple failure.
Q: What suggestions are there for support layout on transport vehicles when shipping such extra-long heavy graphite electrodes?
A: Multi-point distributed supports must be adopted on transport vehicles. Single-point concentrated support is forbidden to avoid deflection deformation of electrodes during long-distance transportation.
