Hebei Fengchao Import and Export Co., Ltd. is one of the most reliable manufacturers and suppliers of graphite electrode 600×2200mm in China. With a professional production team, we are able to meet the needs of the majority of our customers. If you're going to wholesale bulk graphite electrode 600×2200mm made in China, welcome to get pricelist from our factory.
Our RP 600×2200mm regular power graphite electrode adopts an optimized grade calcined petroleum coke formula, suitable for working conditions with medium allowable current density. The 2200mm elongated blank reduces the number of nipples inside medium-sized furnaces. Precisely machined nipple seats ensure reliable locking between electrodes under continuous furnace vibration. Featuring stable overall performance and favorable cost-effectiveness, the product is applicable to scrap steel melting in regular-power electric arc furnaces and metallurgical silicon smelting in submerged arc furnaces. It helps metallurgical enterprises balance operating costs and guarantee continuous furnace output.
The RP graphite electrode 600×2200mm is designed according to the medium current density limit for regular-power electric furnaces. The nipple thread assembly bears alternating cyclic loads caused by periodic furnace vibration from charging and burden stirring. The electrode maintains stable structural rigidity with moderate thermal expansion, lowering the risk of thread loosening during prolonged smelting. This specification is widely equipped in medium-sized regular-power electric arc furnaces for scrap steel remelting, and extensively used in medium and large submerged arc furnaces for metallurgical silicon smelting. It is the preferred electric furnace consumable for medium-sized metallurgical enterprises with medium-capacity planning.
Our RP 600×2200mm graphite electrode adopts a cost-effective dedicated RP formula and mature standardized production process. Relying on a dedicated production line for large-size electrodes and batch quality control system, it delivers consistent and stable performance, suitable for steelmaking in regular-power EAFs and metallurgical silicon smelting with outstanding overall cost performance.

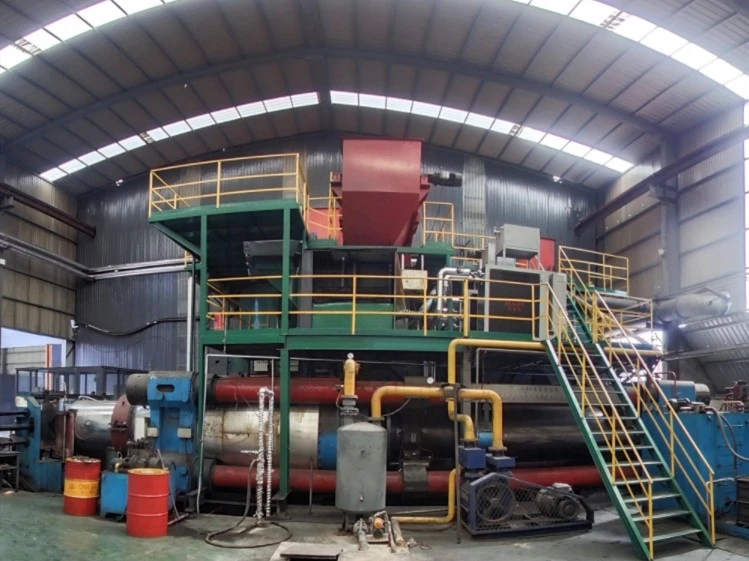

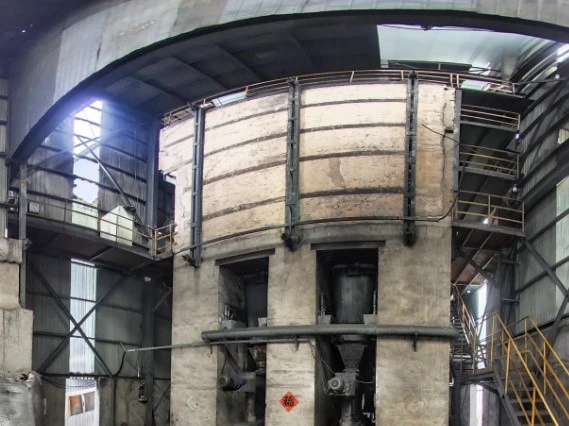

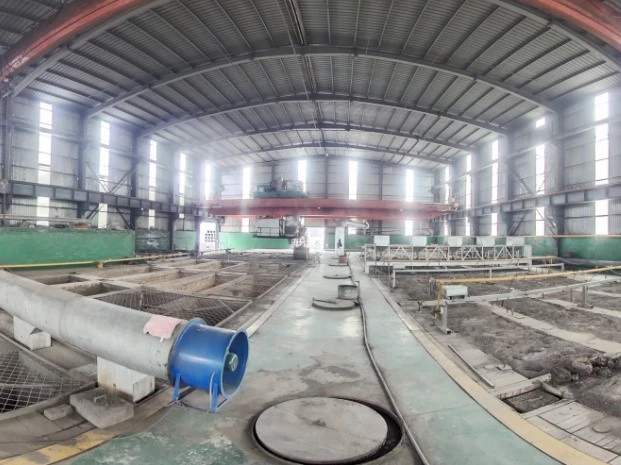

Factory Tour
FAQ
Q: What should be noted regarding the maximum current density in daily use of RP 600×2200mm electrodes?
A: RP-grade electrodes have a clear upper limit for current density. Long-term overcurrent operation will aggravate local overheating and cause abnormal sidewall ablation. This large-size electrode must be operated in accordance with recommended current parameters during smelting.
Q: Why is straightness control particularly critical for this elongated electrode of Φ600, 2200mm in length?
A: Large straightness deviation will generate extra lateral stress after multiple electrodes are connected in series. The eccentric load on nipples is amplified under furnace vibration, increasing the risk of nipple fracture. Our finishing process enhances straightness inspection specifically for elongated blanks.
Q: Are there special fit tolerance requirements between the Φ600 RP electrode body and its matched nipples?
A: Yes. The thread fit tolerance between nipples and electrode bodies must be controlled within the specified range. Over-tight assembly tends to cause cracking after temperature rise; excessive clearance leads to thread wobble under furnace vibration. Thread matching inspection is performed for every batch of finished products.
Q: Can RP600×2200mm electrodes be frequently switched between batch-type EAF steelmaking and continuous metallurgical silicon smelting in submerged arc furnaces?
A: The product is applicable to both working conditions. However, frequent switching between short-cycle batch smelting and long-cycle continuous smelting will shorten the overall service life of the electrode. Appropriate adjustment of operating current is recommended when switching working conditions.
Q: What impacts will seasonal ambient humidity changes bring to the warehousing of this large-size RP graphite electrode?
A: End faces and threaded holes are most prone to moisture absorption in humid seasons. Once damp, internal water vapor expands rapidly upon heating in the furnace and may cause end-face spalling. Protective caps are recommended to cover threaded holes during warehouse storage.
Q: What is the typical lead time for bulk procurement of this large-size RP600×2200mm electrode?
A: 600×2200 is an elongated large-size specification with a longer full production cycle compared with smaller sizes. For bulk orders, it is advised to confirm the delivery period 30 45 days in advance to reasonably arrange furnace consumption plans.
