Hebei Fengchao Import and Export Co., Ltd. is one of the most reliable manufacturers and suppliers of graphite electrode nipple in China. With a professional production team, we are able to meet the needs of the majority of our customers. If you're going to wholesale bulk graphite electrode nipple made in China, welcome to get pricelist from our factory.

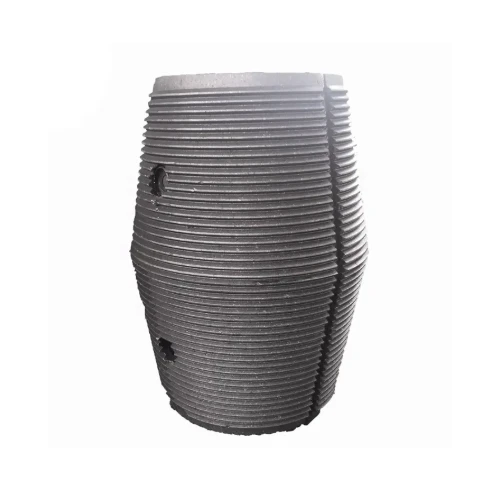

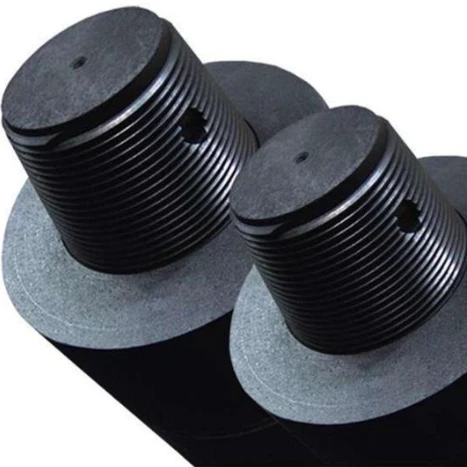

This high-performance graphite electrode nipple is made of refined and purified graphite raw materials with strictly controlled grain microstructure. It can steadily resist combined thermo-mechanical shocks under severe alternating operating conditions inside electric furnaces. It optimizes the overall rigidity of the entire electrode column, suppresses vibration transmission, and reduces the risk of sudden nipple fracture during production in electric arc furnaces and submerged arc furnaces.
This graphite electrode nipple is manufactured from specially treated high-purity graphite blanks, featuring a low coefficient of thermal expansion and uniform internal density. It mitigates misalignment between multi-section electrodes when abrupt temperature changes occur during smelting and relieves local stress concentration at threaded joints under dynamic arc oscillation. In addition to matching all grades of graphite electrodes for steelmaking electric arc furnaces, it is also applied to large submerged arc furnaces for ferronickel smelting. It serves as an indispensable connecting fitting for improving the operational stability of electrode assemblies in various metallurgical projects.
This general-purpose graphite electrode nipple adopts classified calcined petroleum coke and modified coal tar pitch. Produced with medium-pressure isostatic pressing equipment and multi-axis precision CNC machining centers, it undergoes incoming mineral impurity inspection, staged roasting and vacuum pressure impregnation. Our technical team optimizes the carbonization heating curve during roasting to reduce inherent residual stress inside nipple blanks. Offline ultrasonic non-destructive testing is performed on finished products in the factory. We cooperate with overseas customers to develop non-standard size nipples for furnace revamping projects. The company holds ISO9001 and ISO14001 management system certificates. Every graphite electrode nipple is inspected for resistivity, flexural strength and bulk density, providing reliable connecting fittings for multiple types of metallurgical furnace production lines.

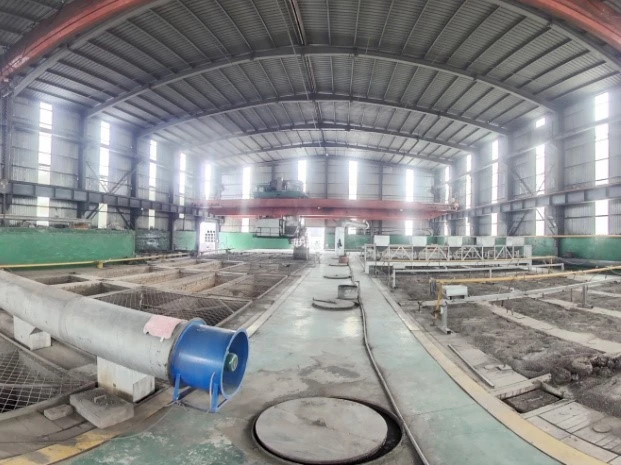

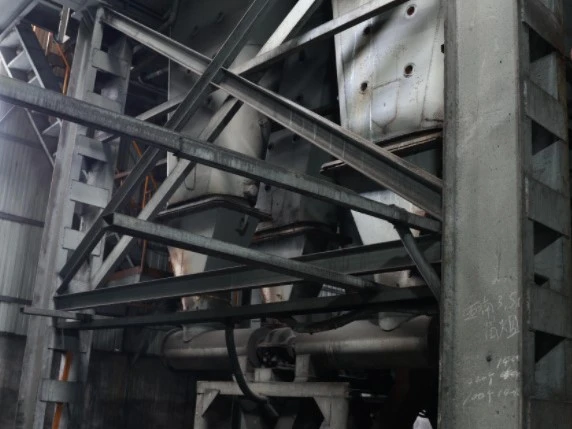

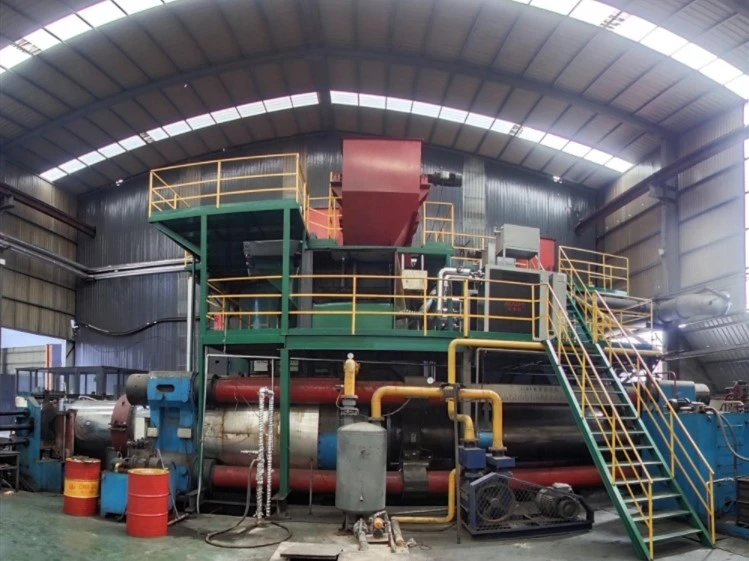

Factory Tour
FAQ
Q: What hidden risks exist when there is a large pitch error and poor matching between nipples and electrodes?
A: Mismatched thread pitch causes point-like stress concentration after screwing. Under repeated thermal cycles in smelting service, cracks initiate at the thread root and may lead to sudden nipple fracture.
Q: How does intermittent production of electric furnaces affect the service life of graphite electrode nipples?
A: Frequent heating and cooling cycles subject nipples to alternating thermal fatigue. Even without obvious mechanical impact, material properties gradually degrade and the overall service life is shortened accordingly.
Q: For nipples selected for revamped smelting furnaces, is it feasible to increase operating current only without upgrading nipple specifications?
A: This practice is not recommended. Increased operating current raises heat generation inside the nipple. With unchanged outer dimensions, overheating and cracking are highly likely to occur.
Q: What adverse consequences will excessive anti-seize compound applied on nipple thread surfaces bring?
A: Excessive anti-seize paste carbonizes under high furnace temperature. Hard carbon residues trapped in thread gaps hinder effective conductive contact and cause elevated local resistance.
Q: What preventive measures can be taken against nipple failure caused by splashing molten steel slag inside the furnace?
A: Optimize the working height of the electrode column to keep nipples away from areas with violent slag splashing as much as possible. Reasonably control the furnace power-up rate to reduce abrupt thermal shock.
Q: What negative effects will strong sunlight exposure impose on graphite electrode nipples during long-term static storage?
A: Prolonged direct sunlight leads to uneven surface heating. Repeated expansion and contraction tend to generate fine surface cracks on threaded sections and weaken the load-bearing capacity of threads.
Hot Tags: graphite electrode nipple, China graphite electrode nipple manufacturers, suppliers, factory
