Hebei Fengchao Import and Export Co., Ltd. is one of the most reliable manufacturers and suppliers of eaf graphite electrodes 300×2200mm in China. With a professional production team, we are able to meet the needs of the majority of our customers. If you're going to wholesale bulk eaf graphite electrodes 300×2200mm made in China, welcome to get pricelist from our factory.
Our Φ300×2200mm quasi-ultra-high-power graphite electrode for electric arc furnaces features upgraded thermomechanical properties compared with conventional HP high-power grade. It withstands higher operating current to meet the demand for technical renovation and capacity expansion of small and medium-sized electric arc furnaces. Optimized thermal shock resistance effectively mitigates the risk of breakage under severe thermal cycling conditions. It provides a cost-effective upgrade solution for steel mills seeking to boost furnace output without directly adopting premium UHP electrodes.
The Φ300×2200mm quasi-ultra-high-power graphite electrode is manufactured from specially modified needle coke. It delivers higher allowable current density than standard HP grade together with favorable surface oxidation resistance. Its compact cross-section fits the limited working space inside compact small electric arc furnaces. The nominal fixed length of 2200mm suits the intermittent batch melting rhythm of steel casting smelting. This grade is mostly applied in new-build short-process small EAF projects and renovation projects converting medium-frequency furnaces to electric arc furnaces. It serves batch smelting of cast steel, alloy structural steel and recycled scrap steel in casting workshops, helping metallurgical plants raise hourly melting capacity without substantial capital investment in equipment.
The Φ300×2200mm quasi-UHP graphite electrode adopts finely screened carbon aggregate and graphitization process with precise temperature control. Supported by flexible small-batch production mode and dual physical-chemical & microscopic inspections, it supplies consistent-quality products for EAF smelting projects of overseas foundries.

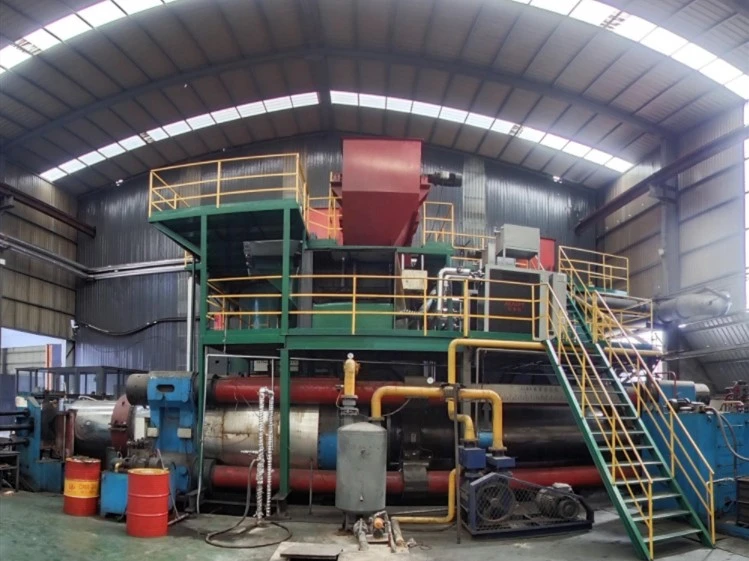

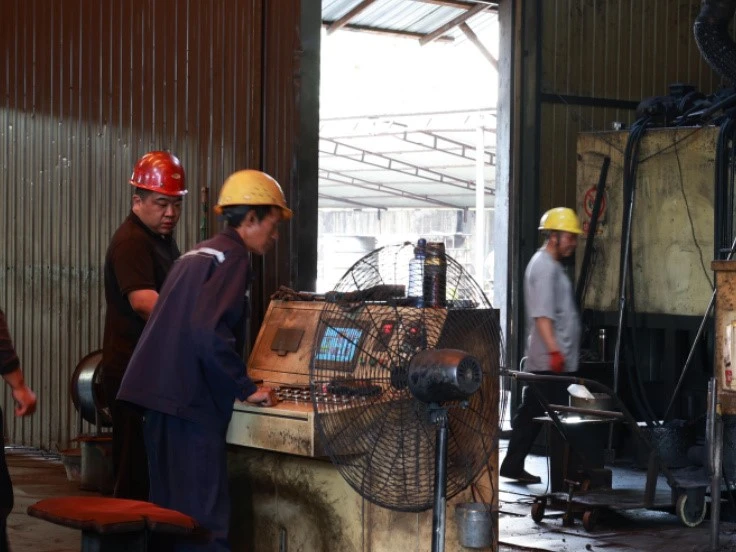

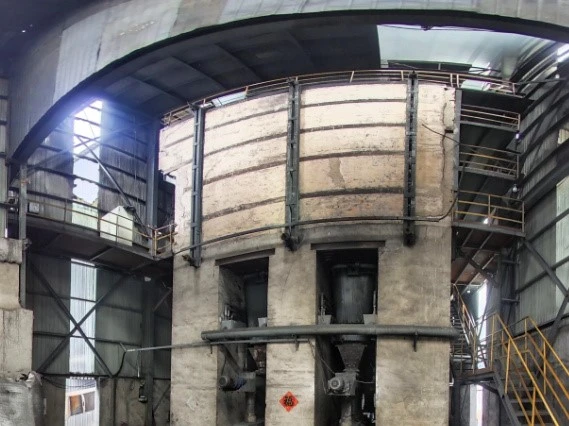

Factory Tour
FAQ
Q: What are the main performance gaps between this Φ300×2200mm quasi-UHP electrode and genuine UHP electrodes?
A: Quasi-UHP has better indicators than standard HP, yet its coefficient of thermal expansion is slightly higher than genuine UHP. It fully meets intermittent smelting requirements of casting EAFs, but is not suitable for high-power round-the-clock continuous steelmaking.
Q: Will repeated thermal shock from frequent start-stop smelting of casting EAFs shorten the service life of Φ300×2200mm quasi-UHP electrodes?
A: Repeated furnace start-stop inevitably generates cyclic thermal shock. Our formula is optimized for intermittent casting production; nevertheless, abrupt power surge shall be avoided during furnace restart to delay the initiation of surface cracks on electrodes.
Q: Under casting working conditions, which factors dominate the consumption rate of Φ300×2200mm quasi-UHP electrodes?
A: Surface oxidative ablation is the primary consumption mode. Long exposure of electrode tips to high-temperature furnace gas accelerates ablation. Proper adjustment of foaming slag condition can effectively reduce overall electrode consumption.
Q: What is the recommended tightening torque for matched nipples of Φ300 quasi-UHP electrodes?
A: The recommended tightening torque for nipples of this small-size electrode is lower than that for large-diameter electrodes. Excessively high torque tends to produce hidden internal cracks on electrode end faces. Please follow our technical guideline parameters during on-site assembly.
Q: Is short-time overload operation permitted for Φ300×2200mm quasi-UHP electrodes when foundries rush production schedules?
A: Moderate short-time overload is acceptable for urgent cast steel batches, yet prolonged continuous overload is strictly prohibited. Sustained overcurrent accelerates the propagation of microcracks and may cause sudden fracture accidents.
Q: Many casting workshops operate under relatively high ambient humidity. What targeted suggestions for on-site storage of quasi-UHP electrodes?
A: Although quasi-UHP blanks feature high density, water vapor can still penetrate after long-term placement in humid workshops. Electrodes shall be elevated off the concrete floor. Plastic covering is recommended to prevent condensation and moisture on end faces and threaded sections.
