Hebei Fengchao Import and Export Co., Ltd. is one of the most reliable manufacturers and suppliers of 600mm graphite electrode in China. With a professional production team, we are able to meet the needs of the majority of our customers. If you're going to wholesale bulk 600mm graphite electrode made in China, welcome to get pricelist from our factory.

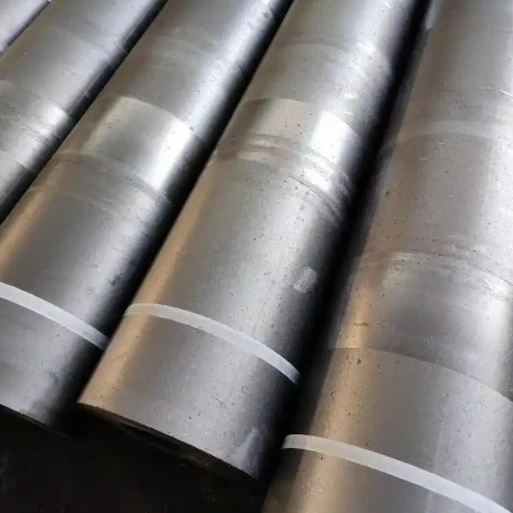

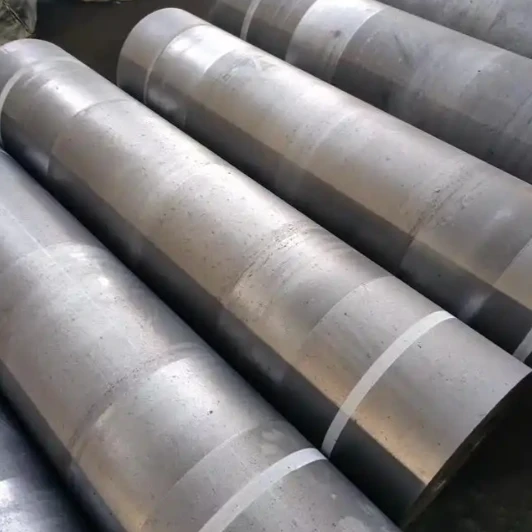

Our Φ600mm graphite electrode features dense and uniform blank microstructure with lower radial resistivity, enabling stable transmission of ultra-high current for large submerged arc furnaces. Optimized end-face oxidation resistance slows oxidative consumption under continuous high-temperature thermal radiation. Specially designed nipple assembly structure relieves thermal stress concentration at joints. It suits long uninterrupted smelting operations for metallic silicon and ferrosilicon production lines, effectively reducing electrode replacement frequency in heavy-load metallurgical production lines.
The Φ600mm graphite electrode is manufactured from extra-large cylindrical blanks. Internal pore distribution is strictly controlled to restrain local overheating under high-density current load. Improved overall thermal conductivity dissipates substantial Joule heat generated inside the electrode when embedded deep in submerged arc furnaces, maintaining good structural integrity under sustained high heat and mechanical loads. This large-size graphite electrode is mainly applied in high-power submerged arc furnaces for smelting metallic silicon, ferrosilicon and silicomanganese alloys. It is also suitable for heavy-duty reduction furnace operations in non-ferrous metallurgy.
Our Φ600mm graphite electrode is produced with graded needle coke raw materials through a long-cycle gradient high-temperature process. Supported by heavy-duty carbon dedicated equipment and ultrasonic flaw detection, the blanks have uniform density and hidden internal crack risks are eliminated for heavy-load submerged arc furnace smelting.

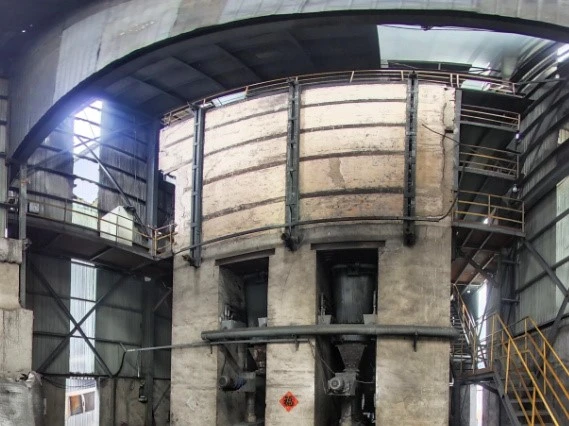

Factory Tour
FAQ
Q: What is the recommended working current range when Φ600mm graphite electrodes are used in submerged arc furnaces?
A: Recommended working current: 28000 35000A. The actual operating current shall be adjusted according to electrode immersion depth, furnace load and impact conditions from furnace charging.
Q: Why does uneven radial consumption occur on large-diameter graphite electrodes during smelting?
A: Uneven radial erosion mainly results from temperature variation around the electrode and intense gas-phase corrosion inside the furnace. Strict raw material grading and homogenized graphitization help mitigate unilateral wear.
Q: What special requirements apply to the transportation and lifting of large electrodes?
A: The product has heavy self-weight and carbon material is highly brittle. Soft slings must be used for lifting. Rigid steel cables are prohibited for direct hoisting to prevent edge chipping or invisible microcracks, which may cause sudden fracture during high-temperature operation.
Q: Is ultrasonic flaw detection performed on every Φ600mm electrode before shipment?
A: Yes. Ultrasonic non-destructive testing is carried out for every finished electrode. Products with detected internal microcracks are rejected directly to eliminate failure risks during continuous heavy-duty furnace operation.
Q: Can nipple material grade be upgraded for long-term heavy-load production in submerged arc furnaces?
A: Yes. Nipples of higher thermal shock resistance grade can be selected on demand to withstand periodic thermal cycling and reduce nipple damage risks caused by charging impact.
Q: What technical documents are required for inquiry of Φ600mm graphite electrodes?
A: Please specify purchase quantity, required nipple material grade, designed working current, normal electrode immersion depth and smelted products (metallic silicon, ferrosilicon, silicomanganese, etc.).
