Hebei Fengchao Import and Export Co., Ltd. is one of the most reliable manufacturers and suppliers of rp graphite electrode 300×1800mm in China. With a professional production team, we are able to meet the needs of the majority of our customers. If you're going to wholesale bulk rp graphite electrode 300×1800mm made in China, welcome to get pricelist from our factory.

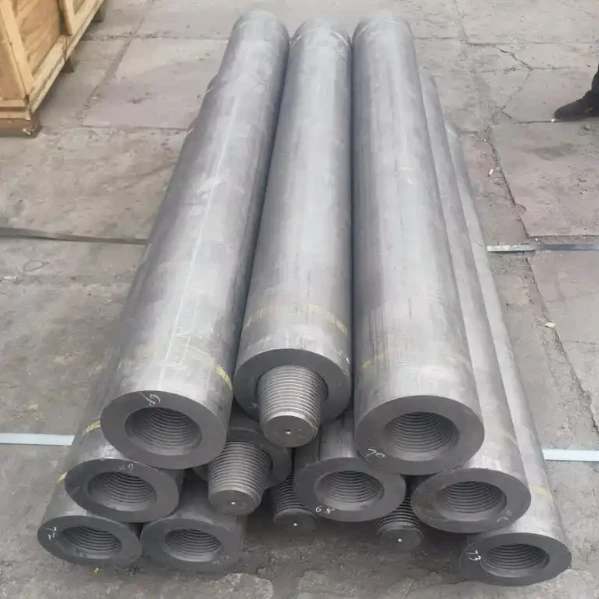

Our RP graphite electrode 300×1800mm adopts matched nipple design for convenient on-site column assembly in electric arc furnaces. The precisely machined tapered threads ensure tight engagement under vibration during furnace smelting, lowering the risk of loosening. It can continuously and stably conduct electric current in medium & low-power metallurgical furnaces. Low ash content reduces harmful impurities introduced into molten steel. This specification delivers favorable economy for scrap steel smelting, calcium carbide and yellow phosphorus production of small and medium-sized metallurgical enterprises.
The RP graphite electrode 300×1800mm features a moderate coefficient of thermal expansion, which mitigates thermomechanical shocks caused by frequent fluctuations of furnace power. Both electrode body and nipples are produced with an identical formula system to reduce thermal stress difference at the joint interface, maintaining a desirable consumption rate under repeated thermal cycling conditions. This size is mainly matched for batch smelting operations of medium-sized electric arc furnaces, and widely used in submerged arc furnaces for calcium carbide, ferroalloy and yellow phosphorus production.
Our 300×1800mm RP graphite electrode is manufactured with metallurgy-grade dedicated raw materials and complete high-temperature processes. Relying on special electrode production equipment and precision nipple matching technology, together with strict inspection under ISO9001, the product features low smelting consumption and stable electrical conductivity.

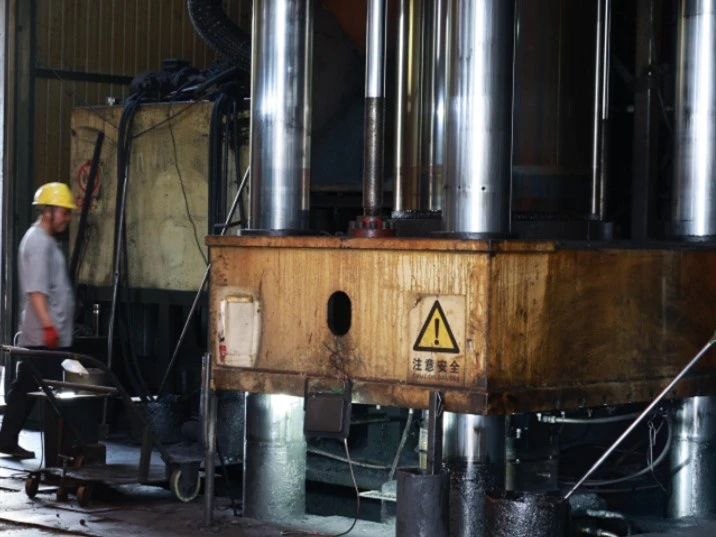

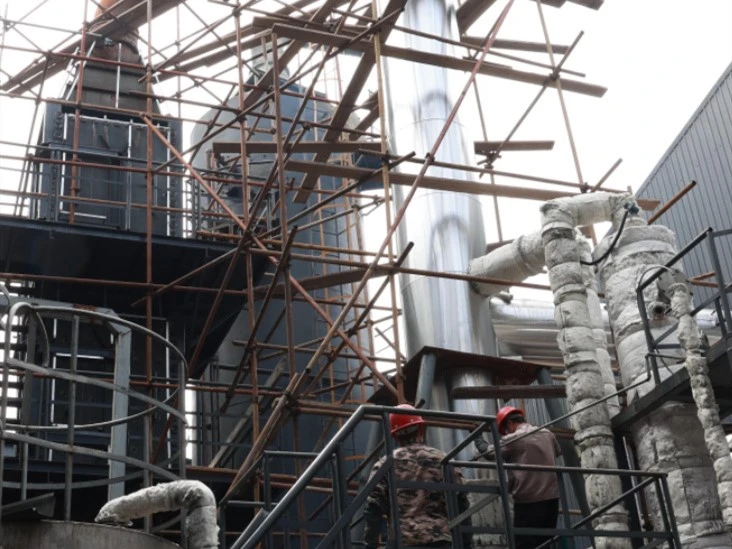

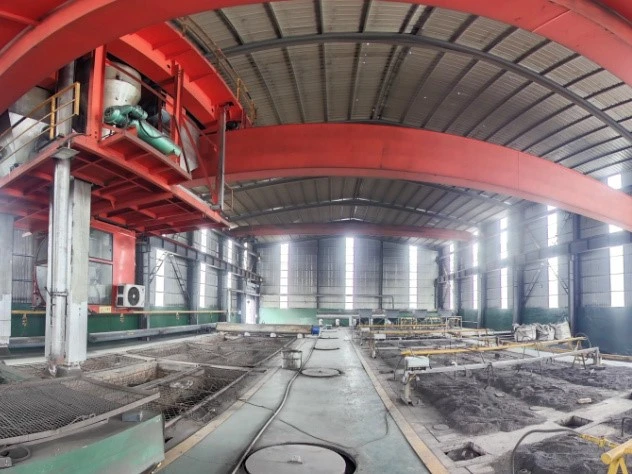

Factory Tour
FAQ
Q: What is the recommended tightening torque for connecting electrodes and nipples on site?
A: The recommended tightening torque for 300 mm RP graphite electrode is 420 480 N·m. Excessively high torque may crack the electrode threaded holes, while insufficient torque tends to cause thread loosening under hot smelting conditions.
Q: Is drying treatment required before charging electrodes into the furnace?
A: Yes. Preheating and drying inside the furnace hood is recommended. Residual moisture inside the electrode will vaporize rapidly at high temperature, which may result in surface spalling or even sudden fracture.
Q: What is the maximum allowable working current for this 300×1800mm RP graphite electrode?
A: Recommended working current range: 11000 14000 Amperes. The actual operating current shall be determined comprehensively according to furnace working conditions, smelting materials and continuous operation duration.
Q: Can electrodes be supplied as a complete set with matching nipples?
A: Complete shipments of electrodes plus matched nipples are available. Upon customer request, nipples can be made of higher-grade formula raw materials to improve crack resistance.
Q: What usually causes loosening of electrode nipples during smelting?
A: It is mainly caused by improper on-site tightening torque, severe furnace vibration and thermal expansion mismatch between electrode body and nipples. Our paired production of electrode bodies and nipples can reduce such failure risk.
Q: What key information is required for inquiry of 300×1800mm RP graphite electrodes?
A: Please confirm purchasing quantity, whether nipples are required together, actual working current of the electric furnace, smelting medium (scrap steel / calcium carbide), and logistics delivery requirements.
